Autonomous Vehicle: EVπ

Collaborated with Foxconn on integrating HHEV.OS into the EVπ control system, ensuring compatibility with ROS2 navigation and localization while enhancing security. I was also responsible for circuit board design and fabrication, including schematic design, PCB layout, and physical production.

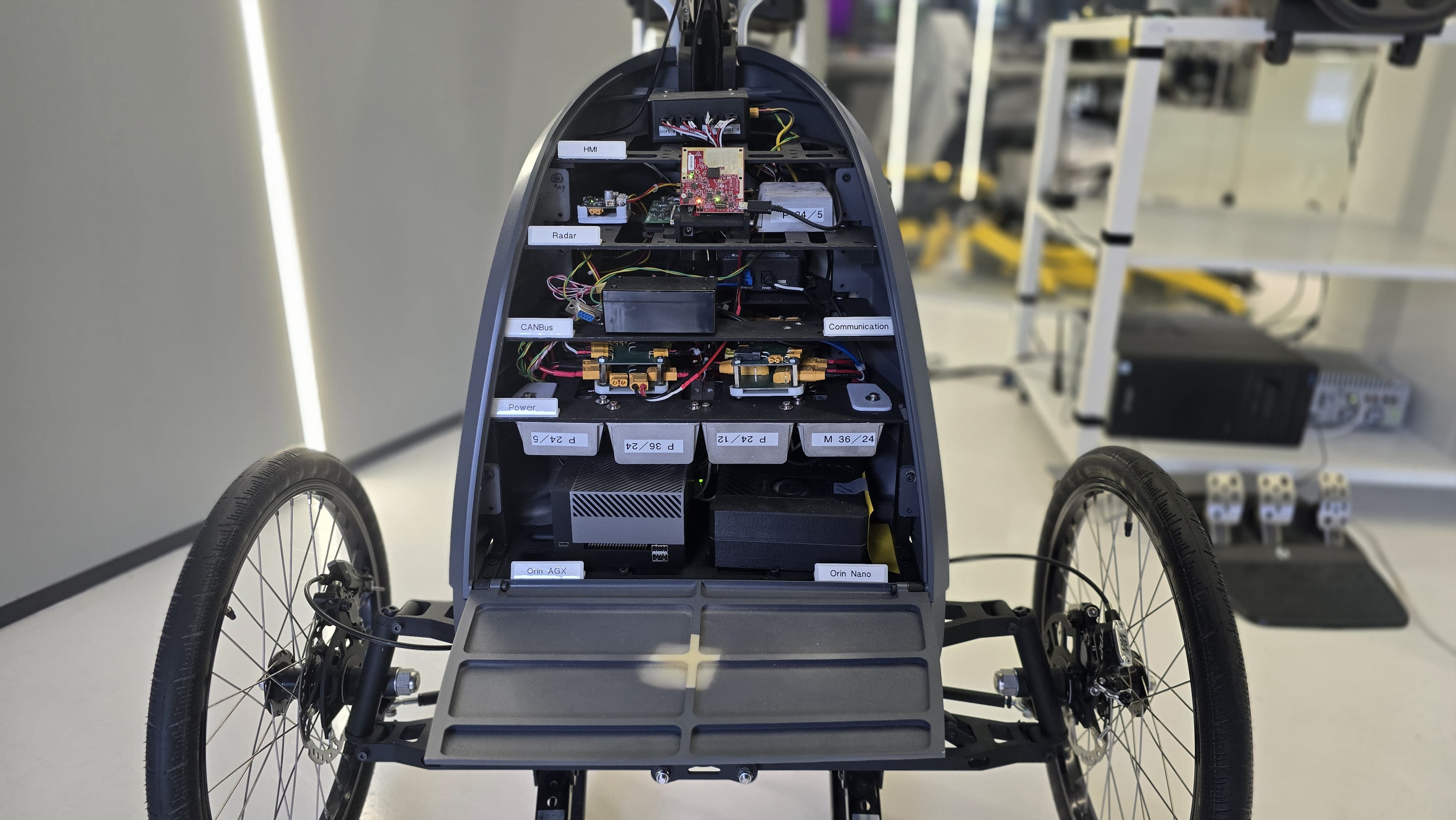

EVπ Vehicle

HHEV.OS Integration

HHEV.OS is a middleware designed specifically for automobiles, balancing the performance of various components to achieve real-time communication and stability. It provides service containers and functions to support modules like BCM, IVI, ADAS, and VCU.

Based on DDS, HHEV.OS shares the same communication protocol as EVπ’s original ROS2 system, ensuring high compatibility. We redefined the software architecture according to HHEV.OS’s SOA design and reimplemented system modules like motor control, UWB, and Zed2 using HHEV.OS’s API. The system now operates normally with both ROS2 and HHEV.OS running simultaneously.

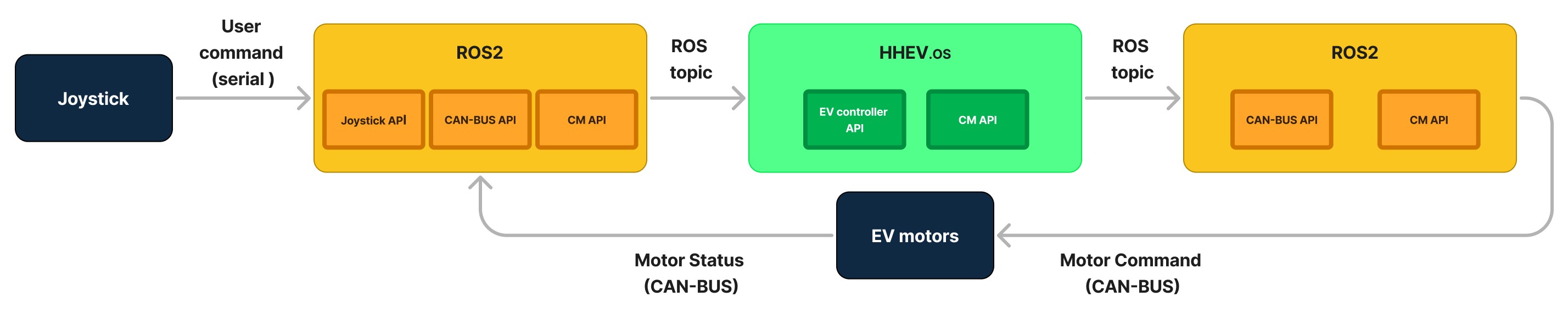

Motor Control with HHEV.OS

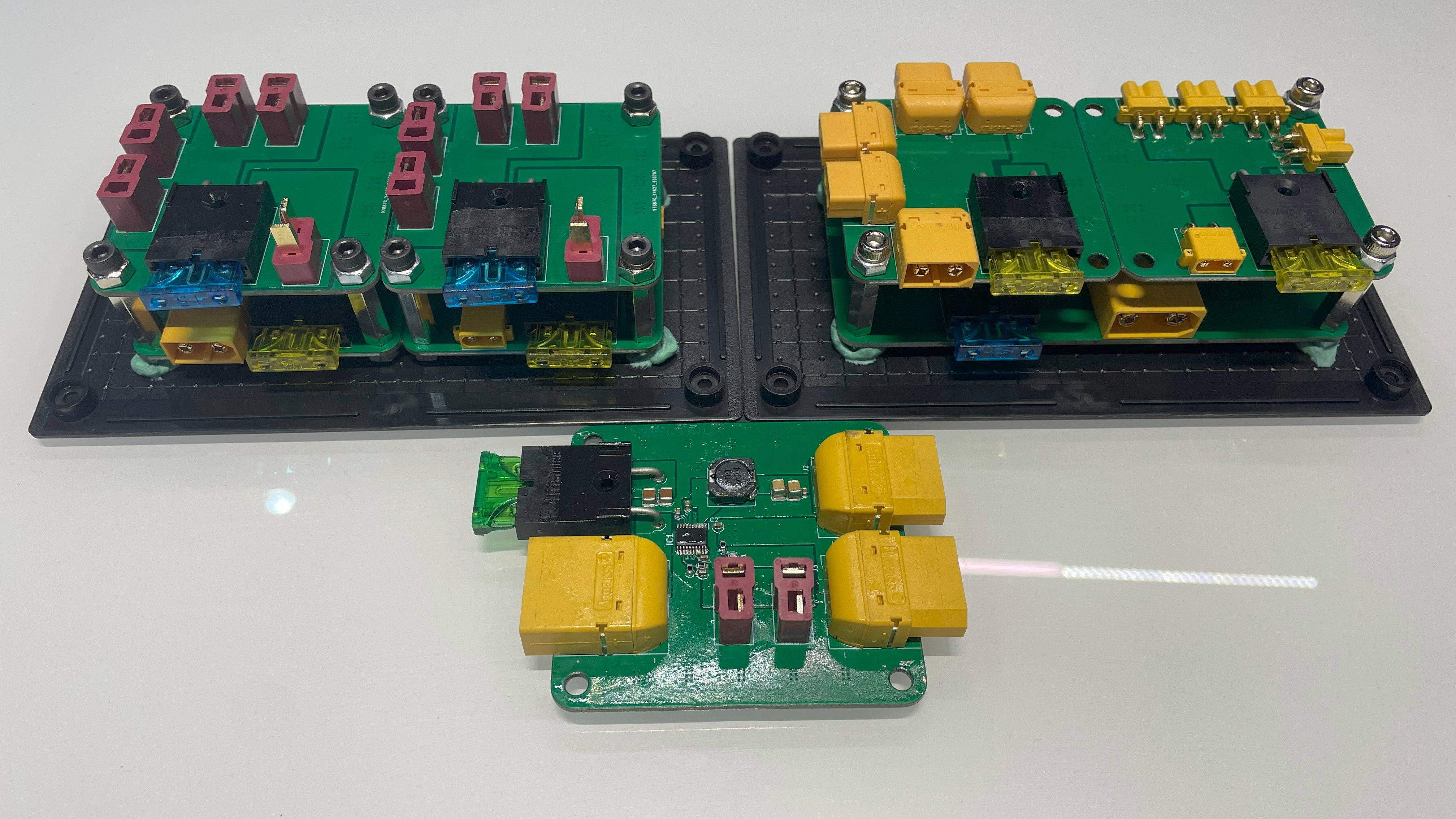

Hardware Circuit Board Production

I participated in redesigning the EVπ’s circuit system architecture, creating a layered power supply system from a 36V battery to meet the different voltage requirements of various modules. My responsibilities included producing the required circuit boards, from initial schematic design (including voltage dividers, buck modules, fuses, and CAN bus modules) to PCB layout and final physical production.
